TP-Link EAP110-Outdoor 300Mbps Wireless N Outdoor Access Point
115 Gel
Product code
15257Quantity
Features
HARDWARE FEATURES

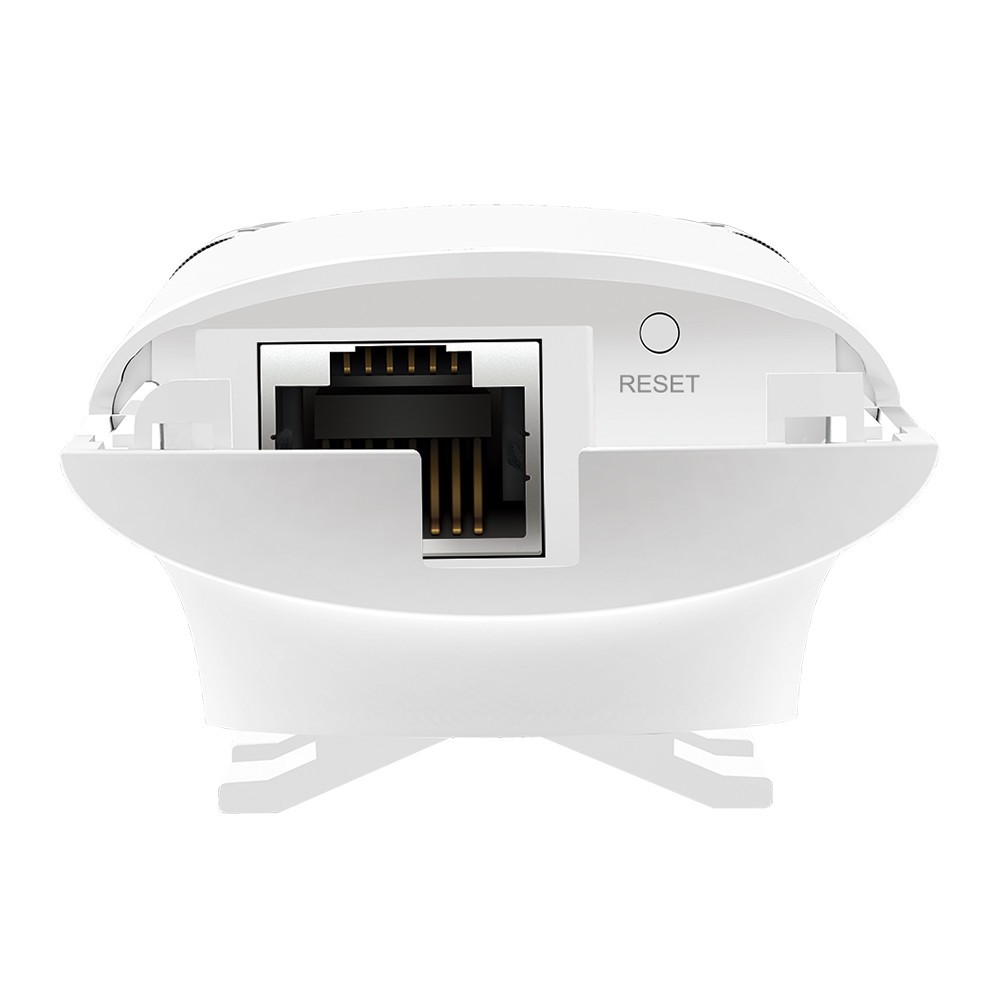

Interface 1 × Fast Ethernet (RJ-45) Port (Support Passive PoE)
Button: Reset
Power Supply 24V Passive PoE, (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 3.1 W

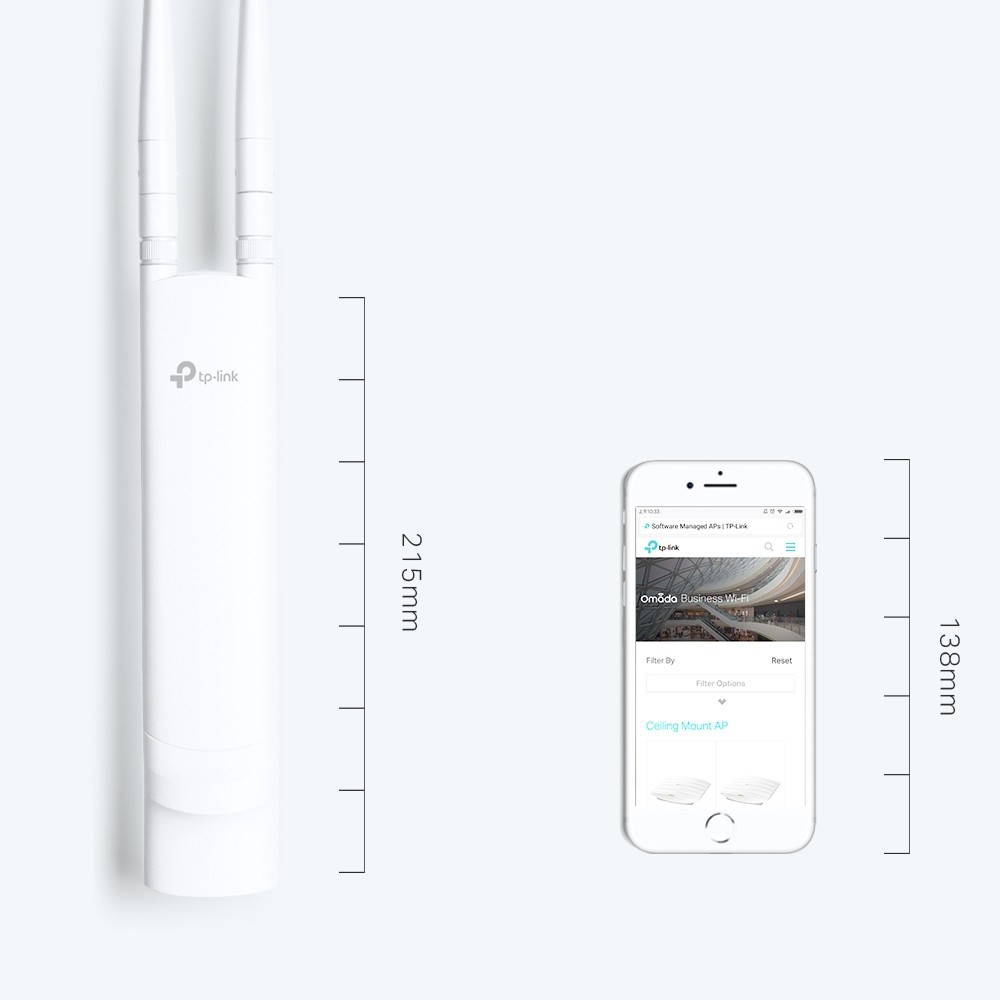

Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
Antenna Type 2 × 3dBi External Omni waterproof
Weatherproof Enclosure IP65

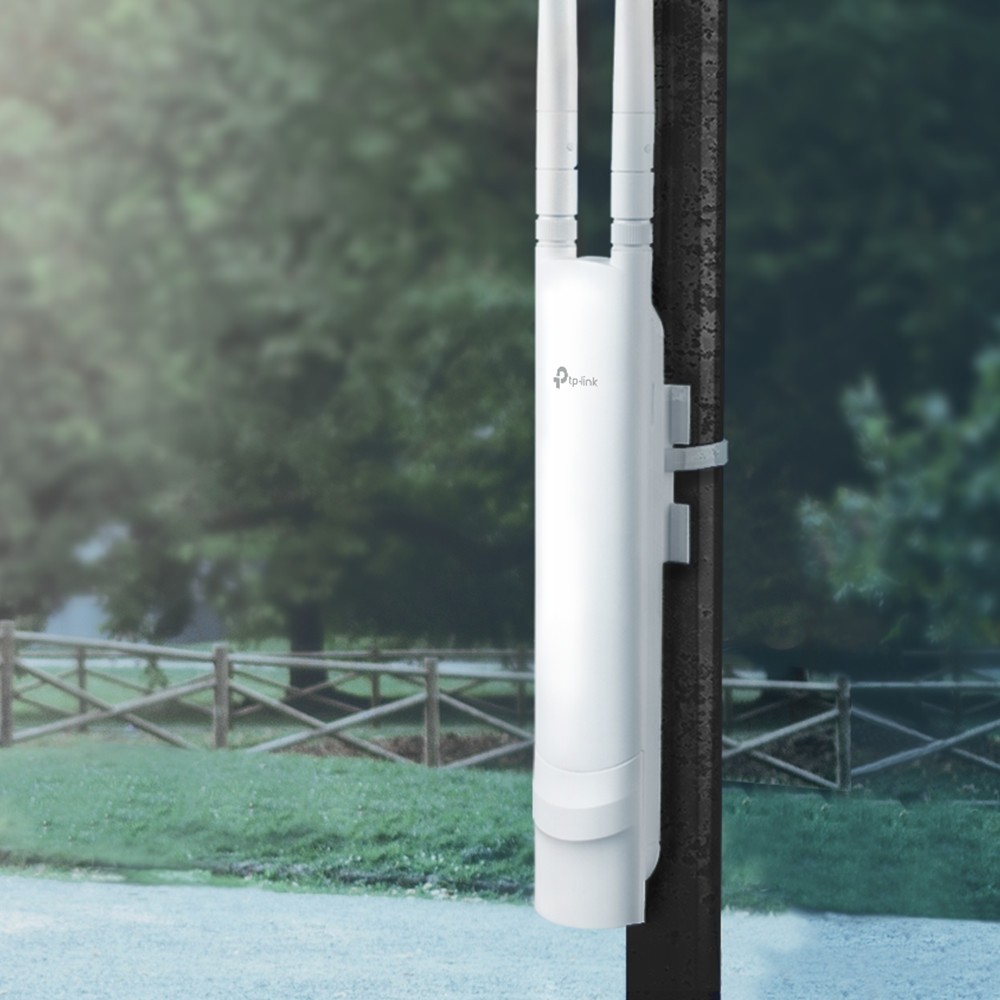

Mounting Pole or wall mounting (mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps*
11g: Up to 54Mbps*
11b: Up to 11Mbps*
Transmit Power < 27dBm
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (adjustable on 1 dBm step)
QoS (WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID, AP, and Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local and Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC, RoHS
Package Contents 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kit
Waterproof Rubber Insert
Waterproof Antennas
Installation Guide
Environment Operating Temperature: -30℃~65℃ (-22℉~149℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
